Roadmap View

Overview​

This page explains the key elements of a Portfolio++ Roadmap. Understanding these components will help you navigate, interpret, and interact with your roadmap effectively.

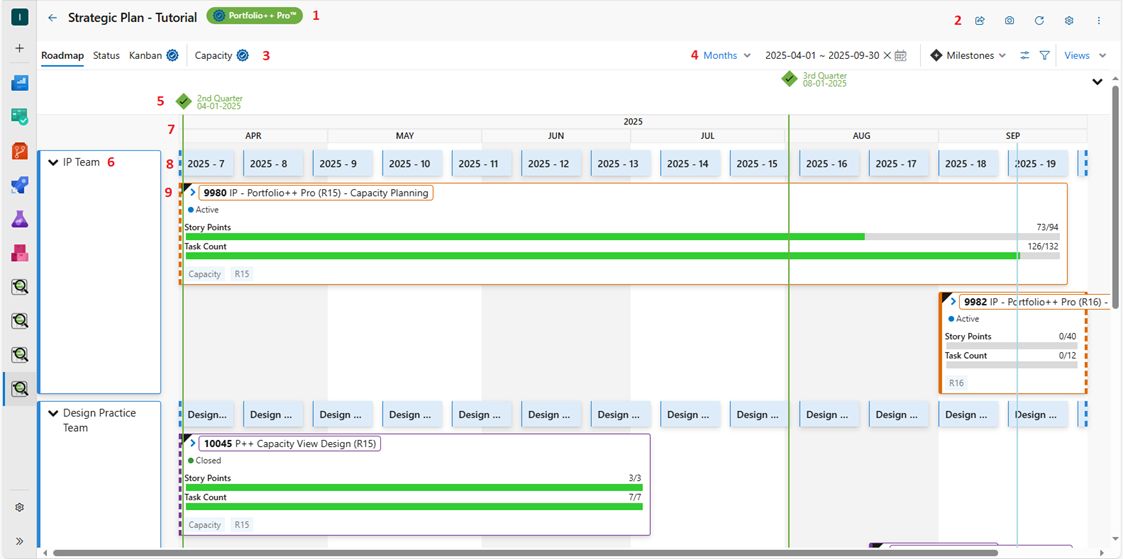

Roadmap View

1) Roadmap Header​

  • Displays the name of the Roadmap.
  • A lock icon will be displayed if the Roadmap is locked.

2) Roadmap Actions​

See Common Controls for more information.

3) Roadmap Tabs​

Each tab represents a different view. The visibility of tabs can be updated by clicking the gear icon in the top right and editing View Controls.

4) Roadmap Toolbar​

See Roadmap Toolbar for more information.

5) Milestones (Pro Feature)​

View your configured milestones. See Roadmap Toolbar for details.

6) Roadmap Selection​

Depending on your Roadmap setup, the card shows Project (Green), Team (Blue), or Query (Purple).

  • Click the displayed name: Navigate directly to the selected Project, Team, or Query in Azure DevOps.
  • Arrow: Expand or collapse the card.

7) Roadmap Timeline​

Displays the roadmap timeline. Use the Roadmap Toolbar to change the Zoom level (Quarter, Month, Week, or Day).

8) Teams Iterations​

On a Team Roadmap, enable Show Team Iteration Path to display Iterations.
Click an Iteration name to navigate directly to that Team’s Iteration taskboard.

9) Selected Work Item​

A selected Work Item is marked with a black triangle in the top left corner of the card. These are the Work Items chosen in Roadmap Settings.

  • Expand: Click the arrow to expand or collapse a Work Item. Expanding for the first time will load all child Work Items.
  • Fields: The following fields can be displayed via Options:
    • ID
    • State
    • Tags
    • Assigned To
  • Metrics: Show as either a count or a percentage.
  • Green Progress Bars: Show current progress based on configurable options in Options.
    • Metrics:
      • User Story / PBI Count
      • Story Points / Effort
      • Task Count
    • Action: Clicking a green progress bar opens a screen showing all related Work Items. (Pro Feature)
  • Dotted line: Indicates the Work Item extends beyond the selected date range.
